CNC Facing Lathe

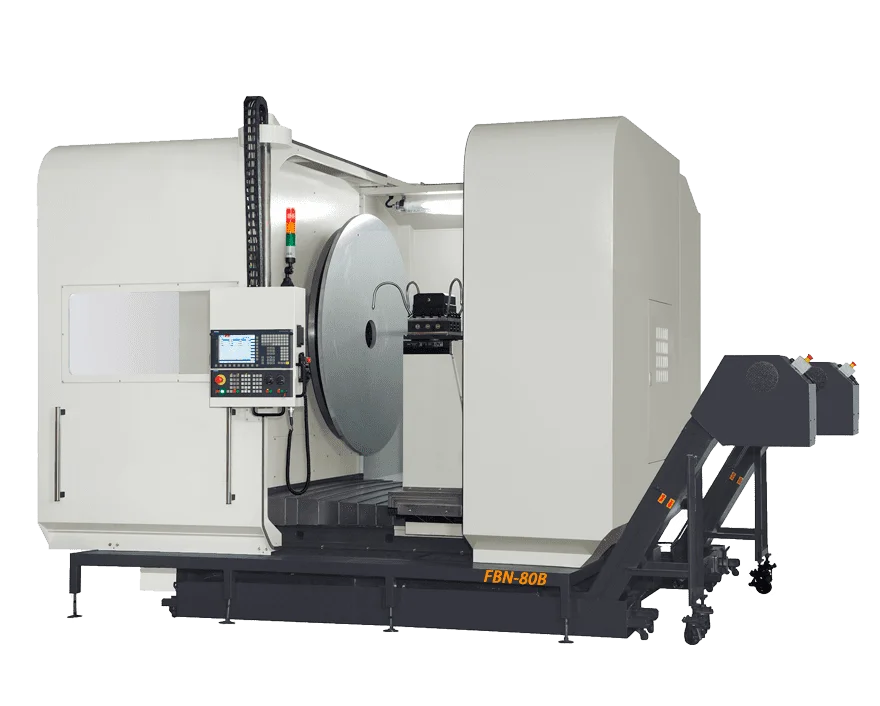

FBN-B Series

Product Description

- Machine Type: Facing Lathe

- Available Machine Sizes: 60B / 80B

- Maximum Cutting OD: 1500/ 2000mm

- Spindle Bore: 155mm

- Spindle Speed Range: 4-600/ 4-400 (with automatic 4-step adjustment)

- Tailstock is available as an optional accessory for added versatility and stability.

INQUIRY E-CATALOGUE

SPECIFICATIONS

ACCESSORIES

FEATURES

CNC FACING LATHE SERIES

FBN-60B/80B SERIES SPECS

	Model	Unit	FBN-60B	FBN-80B
Capacity	Max cutting OD	mm	1500	2000
	Max workpiece length	mm	700 /*1000	1200
	Bed width	mm	820	1400
	Cross slide width	mm	450
	Spindle bore / nose	mm	155 / A2-11, *A2-15
Headstock & main spindle	Spindle taper		MT #7
	Spindle speed range	rpm	4-600	4-400
	Spindle speed steps		4
	Main motor	kw	22 / *30	30 / *37
	Change speed motor	w	60 x 2
Cross slide (X-axis) & Carriage (Z-axis)	Cross slide travel (X-axis)	mm(inch)	800	1200
	Longitudinal travel (Z-axis)	mm(inch)	1000	1200
	Controller		Fanuc 0i-TF (plus) , Fagor 8058 , Siemens 828D / *S-ONE 840D
	AC servo motor (X-axis)	kw	3
	AC servo motor (Z-axis)	kw	5.5
	Dia of ball screw (X-axis)	mm	Φ40 x P5 x C3
	Dia of ball screw (Z-axis)	mm	Φ50 x P10 x C5
	Rapid traverse speed (X-axis)	mm/min	6000
	Rapid traverse speed (Z-axis)	mm/min	8000
Turret / toolpost	Tool station		Quick change toolpost (manual) / Horizontal turret 4T/ *Hydraulic vertical turret 8T / 10T /12T
Turret / toolpost	Tool shank	mm	32
Weight	Net/Gross	kgs(lb)	7000 / 8000	8000 / 9000
Dimensions	Floor size LxWxH	mm	3300x2600x2500	3600x3400x3000

Design and specs are subject to change without prior notice.
The asterisk(*) sign in the spec list indicates that the item is an optional choice.
Main motor option: *40hp Taiwan made motor + 40hp inverter / *50hp Taiwan made motor + 50hp inverter

Optional Accessories

3 Jaw Manual Chuck

4 Jaw Independent Chuck

V8 Electric Turret (V10/V12)

V12 Hydraulic Turret (V8/V10)

H4 Turret

Tool Post-4 Station

Live Tooling Turret

Quick Change Tool Post

Dead Center

Live Center

Headstock Oil Cooler

Heat Exchanger

Boring Tool Holder

Chip Converyor

Hydraulic Tailstock

Two Speed Tailstock

cnc facing lathe drawing

FBN-B Series CNC Facing Lathes:

The Bed-Connected Solution for Efficiency

The FBN-B series CNC Facing Lathes offer a unique bed-connected design that sets them apart. The longitudinal bed way is directly connected to the headstock, enhancing efficiency, rigidity, and now, extended machining length. While functionally similar to the FBN series, this design appeals to those who prefer the added connection between the bed way and the spindle, as well as the capability for longer machining.

Key Features:

Bed-Connected Design: The longitudinal bed way is connected to the headstock, providing added rigidity and support during heavy-duty machining tasks.
Efficiency Boost: Seamlessly switch between facing and turning tasks, reducing setup times and enhancing overall productivity.
Precision Machining: Like their FBN counterparts, the FBN-B series lathes deliver precision and accuracy in machining, ensuring impeccable finishes.
Extended Machining Length: The FBN-B series now boasts the capability for longer machining lengths, accommodating a wider range of workpieces and machining requirements.

Back to list

CNC Facing Lathe FBN-B Series

CNC FACING LATHE SERIES

FBN-60B/80B SERIES SPECS

YOU MAY ALSO LIKE

CNC Facing Lathe

Conventional Facing Lathe

Standard Accessories 1. Pendant operation cabinet

2. Manual pulse generator(MPG) 3. RS232 interface

4. Heat exchanger on electric cabinet 5. Work light & alarm light 6. Standard tool box & operation manual 7. Leveling pads & screws

8. Lubrication system 9. Coolant equipment

10. Floor plate

11. Mechanical one year warranty

12. Controller two year warranty 13. Machine color: Key East standard

Optional Accessories 1. 3-jaw chuck in manual / hydraulic / pneumatic types

2. 4-jaw chuck in manural types

3. Double chuck

4. V8 / V10 / V12 turret in hydraulic / electric types 5. H4 turret in hydraulic / electric types 6. Chip conveyor + cart

7. Boring attachment

8. Mist collector

9. Headstock oil cooler

10. Hydraulic brake for spindle

11. Air conditioner on electric cabinet 12. Taiwan made motor + inverter for spindle 13. Transformer

14. C axis

15. Live tooling Turret
