Product Description

- Spindle Bore: 105/ 155/ 180/ 230mm

- Spindle Speed: 4" bore(20~1500) / 6"bore(20~1000)/ 7"bore, 9"bore(20~800)(auto 3 steps)

- Distance Between Center: 1080 / 1580 / 2080 / 3080 / 4080 / 5080 mm

- Swing Over Bed: 660/ 760mm

- Swing Over Cross Slide: 440/ 540mm

INQUIRY E-CATALOGUE

SPECIFICATIONS

ACCESSORIES

FEATURES

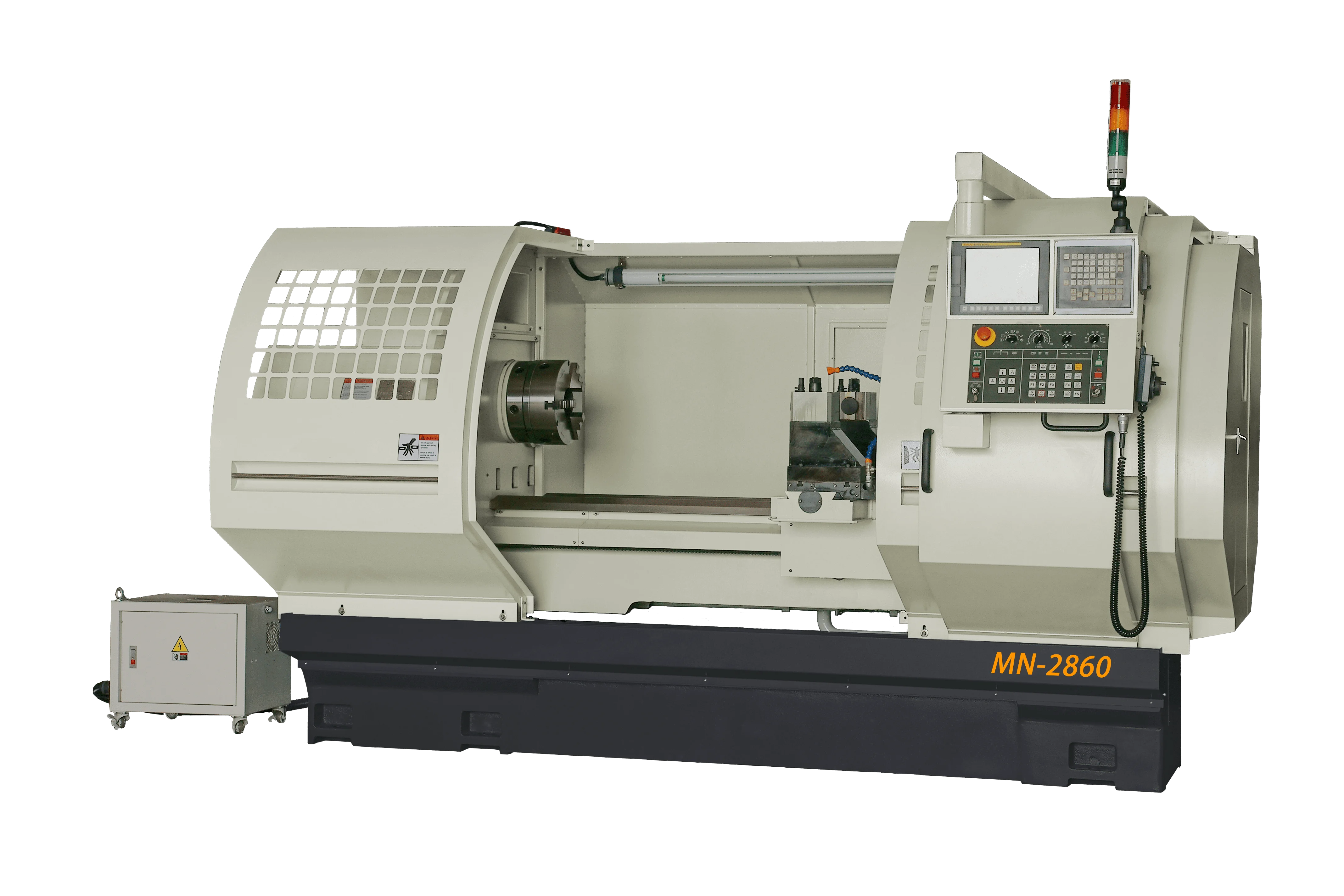

FLAT BED CNC Lathe

MN 26 30 SERIES SPECS

	Model	unit	MN-2640	MN-2660	MN-2680	MN-26120	MN-26160	MN-26200

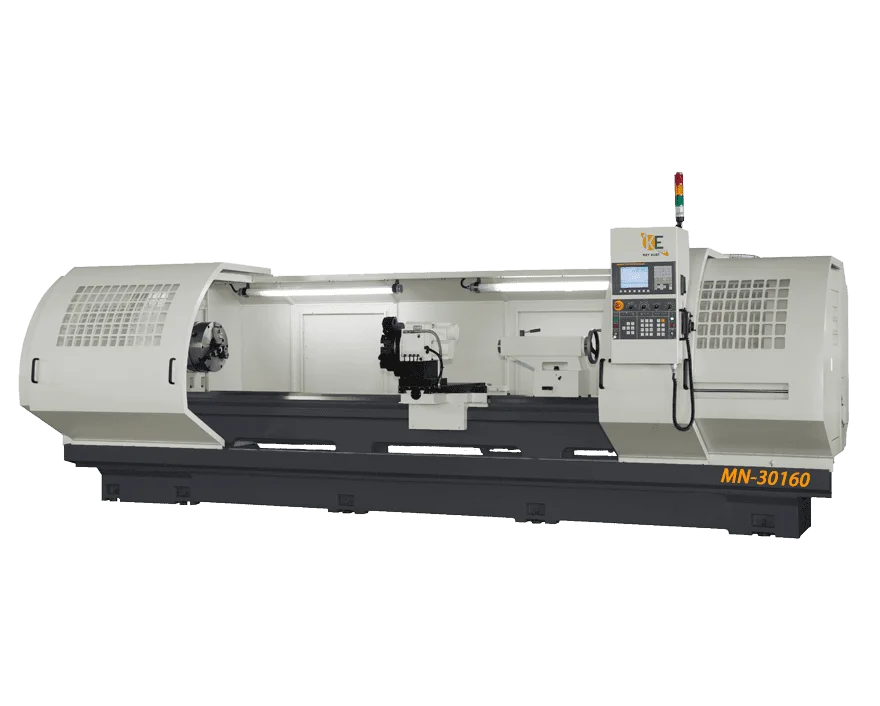

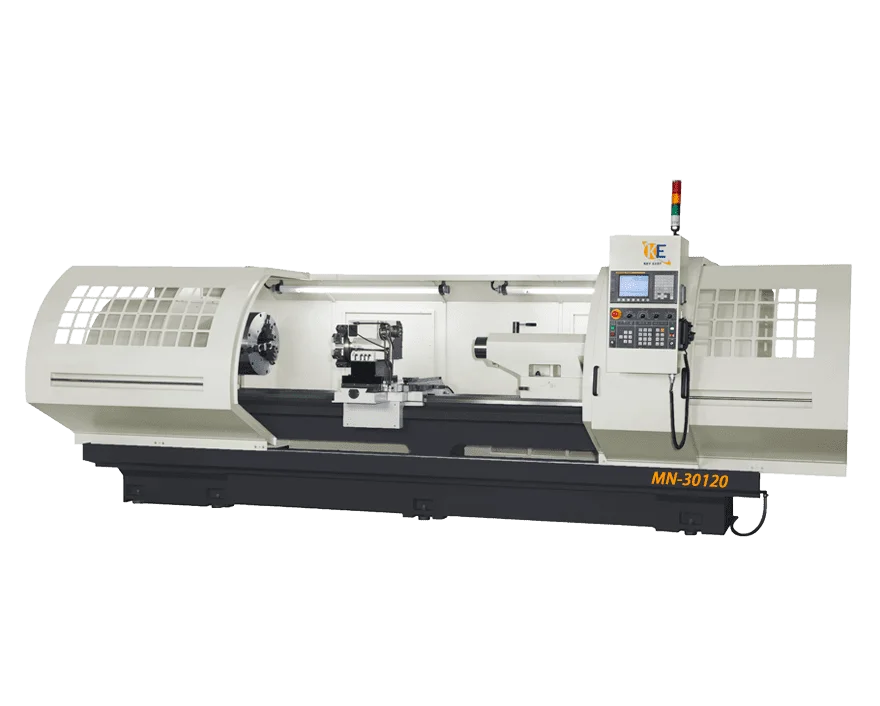

	Model	unit	MN-3040	MN-3060	MN-3080	MN30120	MN-30160	MN-30200
Capacity	Center height	mm(inch)	330(12.99") / 380(14.96")
	Distance between centers	mm(inch)	1080(42.52")	1580(62.20")	2080(81.89")	3080(121.26")	4080(160.63")	5080(200")
	Swing over bed	mm(inch)	660 (25.98") / 760 (29.92")
	Swing over gap	mm(inch)	940 (37") / 1040 (40.94")
	Swing over cross slide	mm(inch)	440 (17.32") / 540 (2126")
	Width of bed	mm(inch)	450 (17.72")
	Bed way		3 V way + 1 Fllat way
	Cross slide width	mm(inch)	250 (9.84")
	Gap width	mm(inch)	*405 (15.94")
Headstock & main spindle	Spindle bore / nose	mm(inch)	105(4") A2-11 / 155 (6") A2-11 / 180 (7") A2-15 / *230 (9") A2-15
	Spindle tapper		MT #7
	Spindle speed	rpm	4" bore(20~1500) / 6"bore(20~1000) / 7"bore , *9"bore(20~800)(auto 3 steps)
Cross slide (X-axis) & Carriage (Z-axis)	Cross slide travel (X-axis)	mm(inch)	480 (18.90")
	Longitudinal travel (Z-axis)	mm(inch)	1100(43.31")	1600(62.99")	2100(82.68")	3100(122.05")	4100(161.42")	5100(200.79")
	AC servo motor (X-axis)	kw	1
	AC servo motor (Z-axis)	kw	2
	Dia of ball screw (X-axis)	mm	Φ32 x P5 x C3
	Dia of ball screw (Z-axis)	mm	Φ50 x P10 x C5				Φ 63 x P10 x C5
	Rapid traverse speed (X-axis)	mm/min	6000
	Rapid traverse speed (Z-axis)	mm/min	8000
Tailstock	Quill taper		MT #5 / (*125mm,165mm MT #6)
	Quill diameter	mm(inch)	Ø 105 (4.13") / Ø 125 (4.92") / rotation quill Ø 165 (6.5")
	Quill travel	mm(inch)	250 (9.84")
Turret / toolpost	Tool station		Quick change toolpost (manual) / Horizontal turret 4T / *Hydraulic vertical turret 8T / 10T / 12T
Turret / toolpost	Tool Shank	mm	25
Motor	Main spindle	kw	15 / *18
	Headstock speed auto change x 1	w	25
	Lube system pump	w	22
	Hydraulic oil pump	hp	2
	Coolant pump	hp	1/2
Accuracy	Positioning	mm	+0.01 / 300
	Repeatability	mm	+0.005
	Spindle run-out	mm	+0.01
Tank Capacit	Hydraulic tank	l	60
Tank Capacit	Coolant tank	l	119	149	179	238	297	356
Controller	Controller	brand	Fanuc 0i-TF (plus) / Simens 828D / *S-ONE 840D / Fagor 8058 / Mitsubishi
Controller	Controllable	axis	2
Weight	Net / Gross	kg(lb)	4200(9240) /	4500(9900) /	4900(10780) /	5550(12210) /	6400(14080) /	7000(15400) /
Weight	Net / Gross	kg(lb)	4500(9900)	4850(9350)	5300(10670)	6150(13530)	7150(15730)	7900(17380)
Dimensions	Floor space (full guard) L x W x H	mm(inch)	3200x2050x2000 (114"x81"x79"	3700x2050x2000 (134"x81"x79")	4200x2050x2000 (154"x81"x79")	5200x2050x2000 (193"x81"x79")	6200x2050x2000 (232"x81"x79")	7200x2050x2000 (272"x81"x79")
Dimensions	Packing Size (full guard) L x W x H	mm(inch)	3500x2200x2200 (138"x87"x87")	4000x2200x2200 (158"x87"x87")	4500x2200x2200 (177"x87"x87")	5500x2200x2200 (217"x87"x87	6500x2200x2200 (265"x87"x87")	7500x2200x2200 (296"x87"x87")

Design and specs are subject to change without prior notice.
The asterisk(*) sign in the spec list indicates that the item is an optional choice.

Optional Accessories

3 Jaw Manual Chuck

4 Jaw Independent Chuck

V8 Electric Turret (V10/V12)

V12 Hydraulic Turret (V8/V10)

H4 Turret

Tool Post-4 Station

Live Tooling Turret

Quick Change Tool Post

Dead Center

Live Center

Headstock Oil Cooler

Heat Exchange

Boring Tool Holder

Chip Converyor

Hydraulic Tailstock

Two Speed Tailstock

Flat-Bed CNC Lathes:

also known as flat bed turning machine and horizontal turning machine.

Imagine a versatile machine called a flat-bed CNC lathe. It's like a super-tool for shaping various parts, and it's computer-controlled for precision. These lathes are like the workhorse of the machining world. They can turn, mill, and drill metal or other materials. With them, you can create parts for all sorts of machines and devices.

Back to list

High Speed CNC Turning Machine Flat bed CNC Lathe MN SERIES

FLAT BED CNC Lathe

MN 26 30 SERIES SPECS

YOU MAY ALSO LIKE

HIGH SPEED CNC LATHE

HEAVY DUTY CNC LATHE

HEAVY DUTY CNC LATHE

Standard Accessories 1. CNC controller

2. Spindle + X/Z servo motors

3. Manual tailstock 4. Half splash guard 5. Pendant operation box 6. Manual pulse generator(MPG)

7. RS232 interface 8. Heat exchanger on electric cabinet

9. Work light & alarm light 10. Standard tool box & operation manual 11. Leveling pads & screw 12. Lubrication system 13. Coolant equipment 14. Steady rest (roller type)

15. Mechanical one year warranty 16. Controller two year warranty 17. Machine color: Key East standard

Optional Accessories 1. 3-jaw chuck in manual / hydraulic / pneumatic types

2. 4-jaw chuck in manural types 3. Double chuck

4. V8 / V10 / V12 turrut in hydraulic / electric types

5. H4 turret in hydraulic / electric types

6. Two-speed tailstock / manual rotating tailstock / hydraulic tailstock 7. Live center

8. Chip conveyor + cart

9. Boring attachment

10. Mist collector

11. Full splash guard

12. Headstock oil cooler

13. Hydraulic brake for spindle

14. Hydraulic steady rest

15. Air conditioner on electric cabinet

16. Taiwan made motor + inverter for spindle

17. Transformer

18. C axis

19. Live tooling Turret
