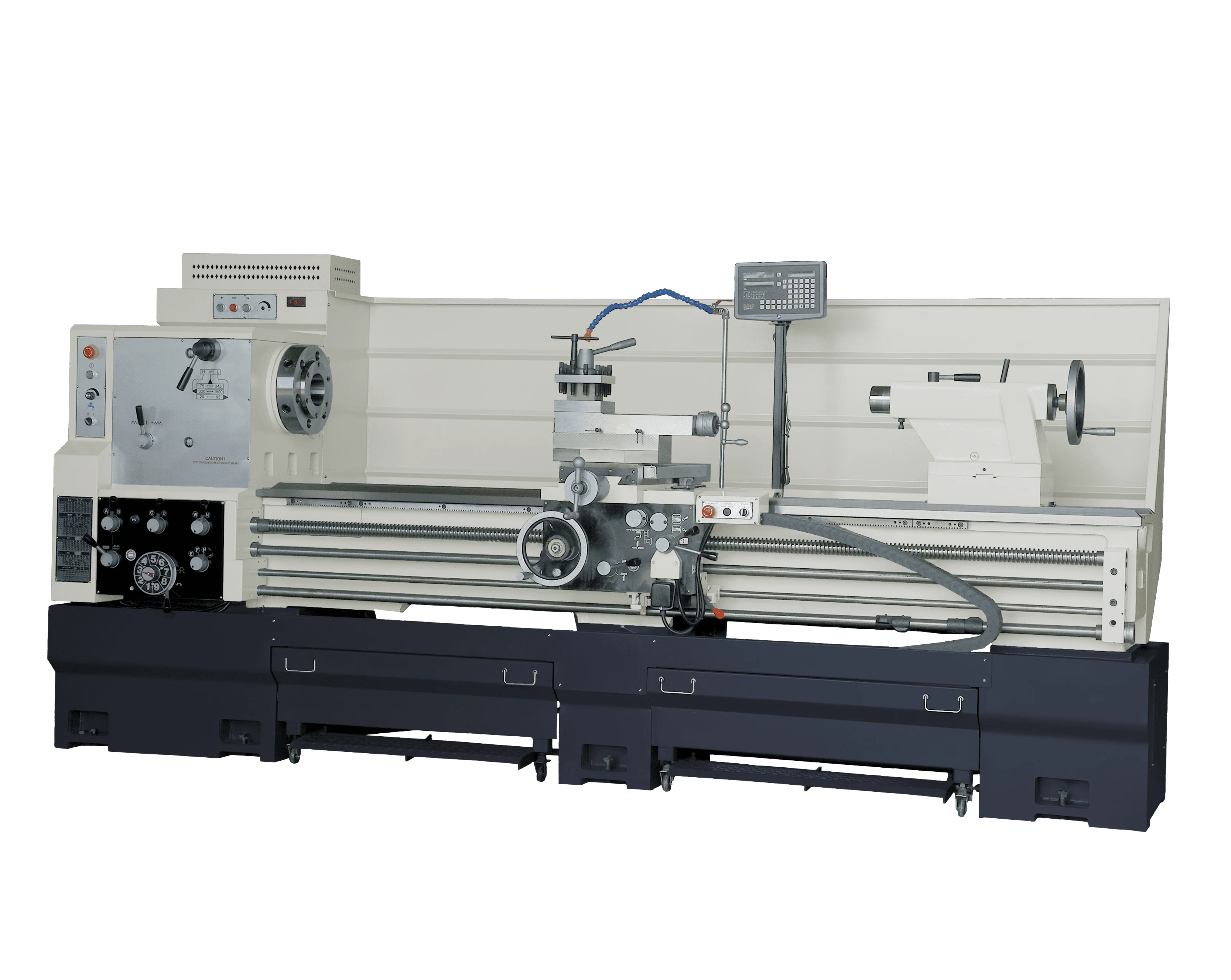

Conventional Lathe Machine

Flat Bed Lathe
Model: MV SERIES

Product Description

- Model: MV-2640/MV-2660/MV-2680/MV-26120/MV-26160/
MV-3040/MV-3060/MV-3080/MV-30120/MV-30160

-Swing over bed: 660mm/760mm

- Spindle Bore: 105mm/155mm/180mm/230mm

- Spindle Speed: 105mm 20-1500rpm/155mm 20-1000rpm/180mm, 305mm 20-800rpm(3 steps)

- Distance Between Center: 1000mm/1500mm/2000mm/3000mm/4000mm
SPECIFICATIONS

Conventional Lathe

MV 26 30 SERIES SPECS


Model  2640 2660 2680 26120 26160
3040 3060 3080 30120 30160
Capacity
Swing over bed 660mm(26") 760mm(30")
Swing over cross slide 420mm/520mm
Swing in gap 910mm/1040mm
Width of gap 1000mm 1500mm 2000mm 3000mm 4000mm
Between center distance
Headstock
Spindle bore / nose 26 series:  105mm (4") A2-11
30 series:105(4") A2-11 / *155 (6") A2-11/ *180 (7")A2-15/ *230 (9")A2-15
Spindle speed range

4" bore(20~1500)rpm / *6"bore(20~1000)rpm/*7"bore,*9"bore(20~800)rpm

Spindle speed steps 3 steps(Variable speed)
Main motor 20HP with invertor
Diameter of leadscrew 45mm(1-3/4")*2.T.P.I. or 12mm
Longitudinal feeds 0.05-0.7mm/rev
Inch threads 2-28 thread/in   (D.P. 4-56)
Metric threads 0.8-14mm/thread   (M.P. 0.5-7)
CARRIAGE & APRON
Cross slide width 250mm
Cross slide travel 350mm
Compound  slide travel 225mm
Tool post 125mm*125mm
 Tailstock
Tailstock  quill diameter 105mm
Quill travel 200mm
Quill taper M.T.  #5

Width of bed 450mm(17.7")
Net weight 2500kgs 3000kgs 3500kgs 4300kgs 5100kgs
Packing size   W:1.6M  H:1.9M L:2.6M L:3.1M L:3.6M L:4.6M L:5.6M
